Standard Configurations

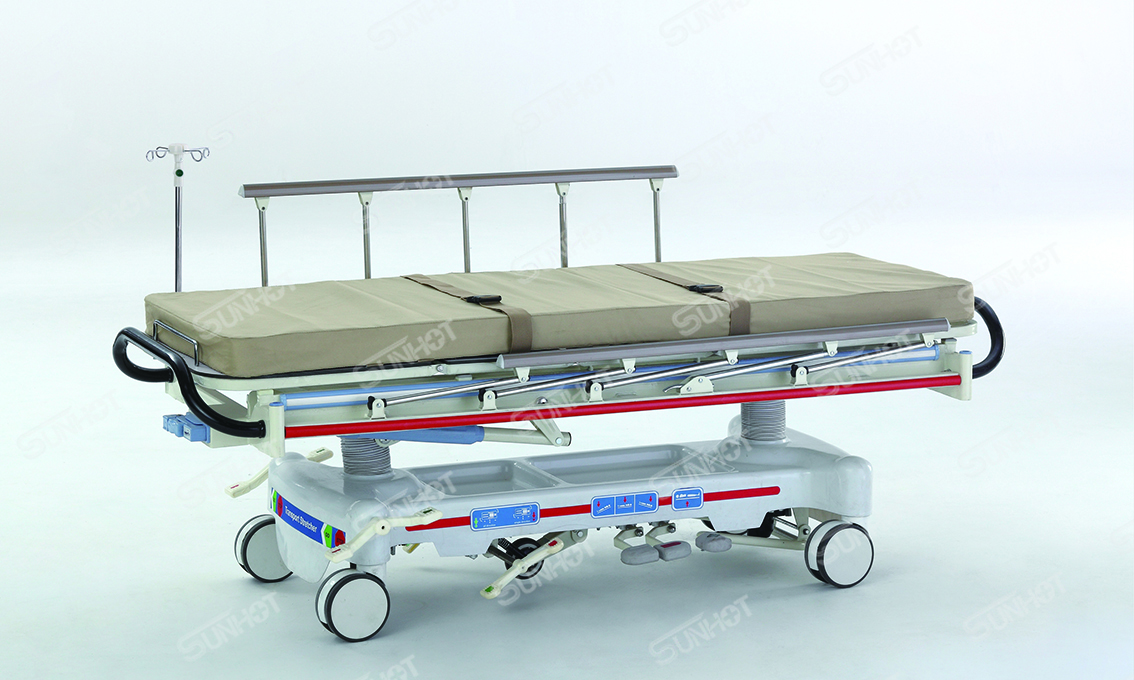

○ The main platform of the stretcher which is equipped with imported double rise-and-fall hydraulic pump systems is made of X-ray revealed material.
○ Central locking system and the fifth steering castor make the stretcher move steadily, reliably and lightly.
○ The stretcher has the functions of hi-low, Trendelenburg and reverse Trendelenburg which are controlled by the treadles lying at the two sides of the stretcher.
○ The rear of the stretcher has the the central locking treadles, the bottom cover is made of ABS material and shaped once for all which can be easily cleaned.
○ The stretcher is equipped with infusion poles, drainage hooks and collapsible aluminum alloy side rails.
○ It is the best choice for emergency room and ICU ward for transferring patient.
Technical features
Outer dimensions (Side rails up): L2095*W790mm（±10mm）
Mattress platform: L1910*W640mm（±10mm）
Bed height: H585-910m（±10mm）
Maximum backrest angle: ≥70°
Maximum thigh rest: ≥25°
TR/ATR: ≥12°
Height of side rails(above mattress platform): 380mm（±10mm）
Safe working load: 200kgs
