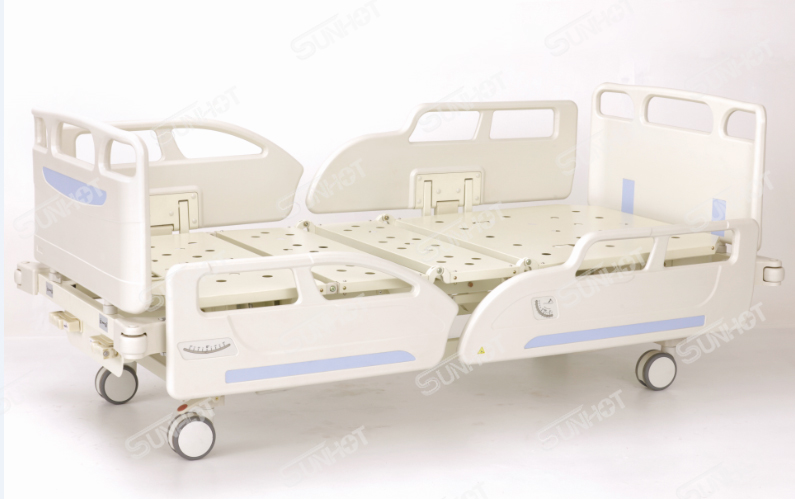

Standard Configurations
1.Split side rails: The 4pcs PP side rails provide the patient with protection against falls.
2.Removable mattress platform: The mattress platform is easy removable and easy for sterilization.
3.H/F boards locks: The board locks prevent accidental removal of the bed boards when steering or handing the bed
4.Angle gauge: The angle gauges of side rails in the head and foot direction show the angles of the backrest and tilt of the whole bed mattress platform respectively
5.Protective corner bumpers
6.Lifting pole and infusion stand holes
7.Mattress holders
8.Drainage Hooks
9.Four 125mm diameter castors with central locking system
Technical features
Outer dimensions (Side rails up): L2200*W1060mm（±10mm）
Mattress platform: L1930*W900mm（±10mm）
Bed height: H500mm（±10mm）
Maximum backrest angle: ≥70°
Maximum thigh rest: ≥25°
Height of side rails(above mattress platform): 380mm（±10mm）
Safe working load: 200kgs
